Battery cable removal note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

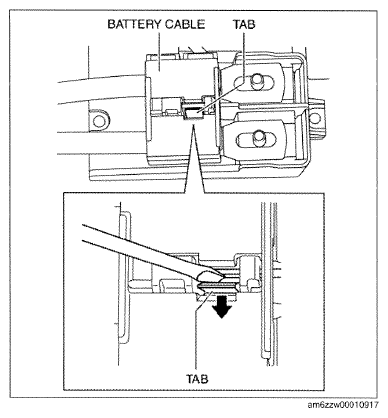

- Remove the battery cable terminal nuts.
- Using a flathead screwdriver, shift the battery cable tab in the direction of the arrow, raise the battery cable and remove it.
Courtesy of MAZDA MOTORS CORP.
