Drive Shaft Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

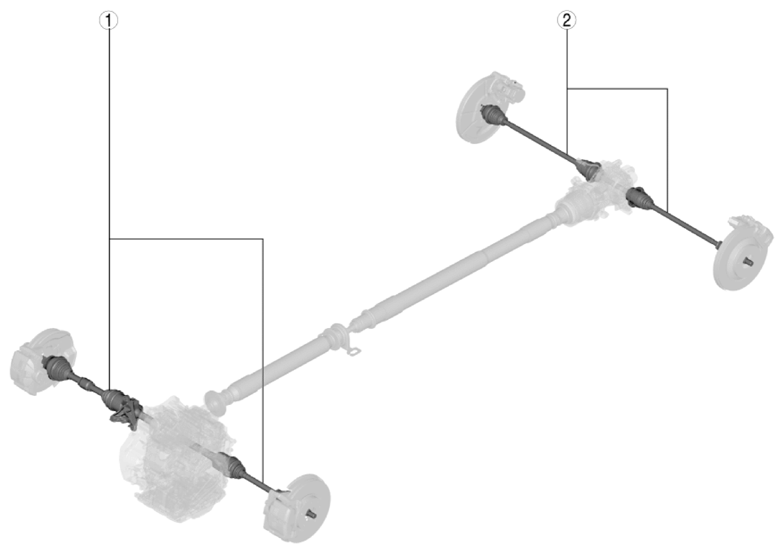

Fig 1: Front And Rear Drive Shafts

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front drive shaft (See FRONT DRIVE SHAFT INSPECTION .) (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .) (See FRONT DRIVE SHAFT (TRIPOD JOINT) DISASSEMBLY/ASSEMBLY .) (See FRONT DRIVE SHAFT (DOUBLE OFFSET JOINT) DISASSEMBLY/ASSEMBLY .)
2	Rear drive shaft (AWD) (See REAR DRIVE SHAFT INSPECTION .) (See REAR DRIVE SHAFT REMOVAL/INSTALLATION .) (See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY .)
