Rear Drive Shaft Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Inspect each connecting part for looseness.
- Tighten or replace parts if necessary.
Inspect the dust boot on the drive shaft for cracks, damage, leaking grease, and looseness in the boot band.

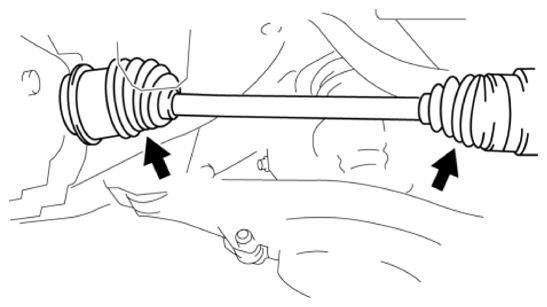

Fig 1: Locating Rear Drive Shaft Dust Boots
Courtesy of MAZDA MOTORS CORP.
Inspect the drive shaft for bends, cracks, and wear in the joints or splines.
- Repair or replace the drive shaft or boot band if necessary.
