Front Drive Shaft Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the connections for any looseness.
- If there is any malfunction, tighten or replace the applicable part.
Inspect the dust boot for damage and cracks.

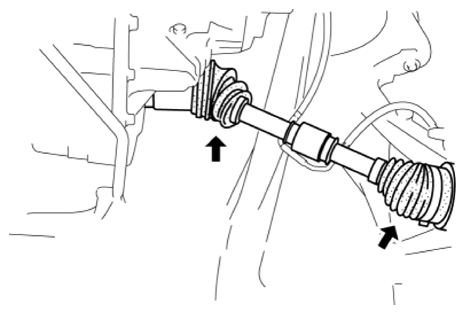

Fig 1: Locating Front Drive Shaft Dust Boot
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the applicable part.
Move the spline and joint up and down, left and right by hand and verify that there is no excessive play.
- If there is any malfunction, replace the applicable part.
