Rear Differential Disassembly: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- The engine stand is equipped with a self-lock mechanism, however, if the rear differential is in a tilted condition, the self-lock mechanism could become inoperative. If the rear differential unexpectedly rotates it could cause injury, therefore do not maintain the rear differential in a tilted condition. When turning the rear differential, grasp the rotation handle firmly.
- Disassemble in the order indicated in the table.

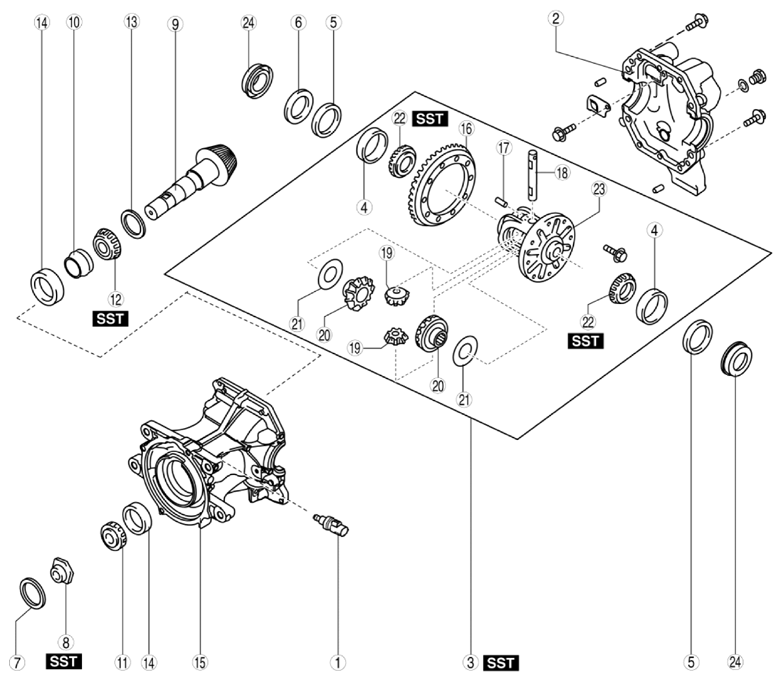

COMPONENT DESCRIPTION
| 1 | Differential oil temperature sensor |
| 2 | Rear cover (See Rear Cover Disassembly Note .) |
| 3 | Rear differential component (See Rear Differential Component Disassembly Note .) |
| 4 | Side bearing outer race |
| 5 | Adjusting shim |
| 6 | Spacer |
| 7 | Oil seal (Coupling component) |
| 8 | Locknut (See Locknut Disassembly Note .) |
| 9 | Drive pinion (See Drive Pinion Disassembly Note .) |
| 10 | Collapsible spacer |
| 11 | Bearing inner race (front bearing) |
| 12 | Bearing inner race (rear bearing) (See Bearing Inner Race (Rear Bearing) Disassembly Note .) |
| 13 | Spacer |
| 14 | Bearing outer race (See Bearing Outer Race Disassembly Note .) |
| 15 | Differential carrier |
| 16 | Ring gear (See Ring Gear Disassembly Note .) |
| 17 | Pin |
| 18 | Pinion shaft |
