Rear Cover Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SSTs  to the engine stand.

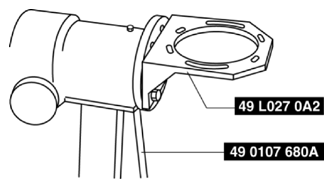

    Fig 1: Installing SST To Engine Stand
    G10936692Courtesy of MAZDA MOTORS CORP.
  2. Install the rear differential to the SSTs  .

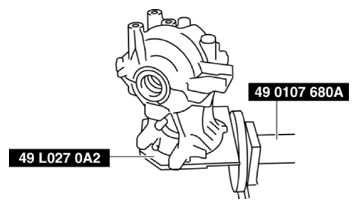

    Fig 2: Installing Rear Differential To SST
    G10936693Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear cover.
