Front Heat Duct Removal/Installation: Passenger-side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
1. Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
2. Dashboard under cover (See DASHBOARD UNDERCOVER REMOVAL/INSTALLATION .)
3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Detach the tab and remove the front heat duct.

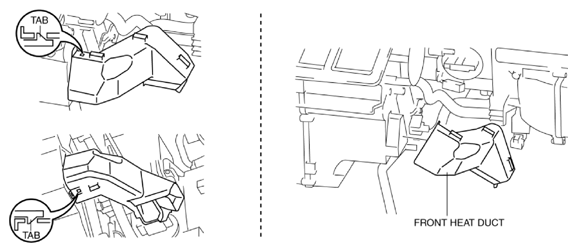

Fig 1: Identifying Front Heat Duct And Tabs (Passenger-Side)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
