U.S.A. And CANADA: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

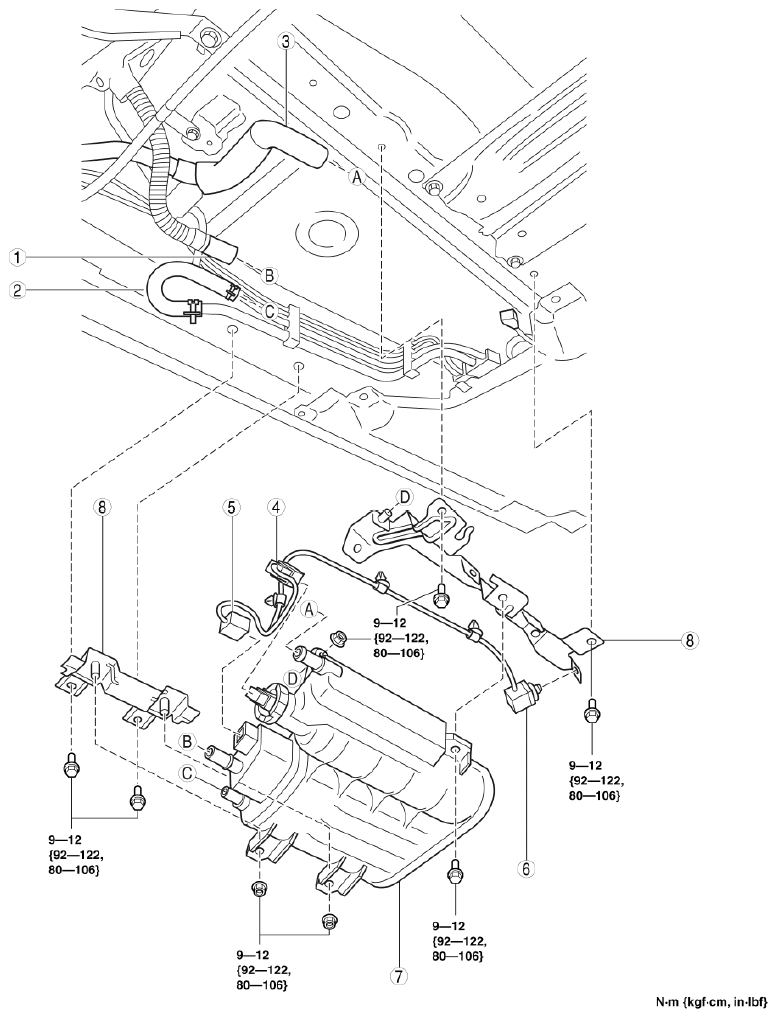

Fig 1: Charcoal Canister Related Components With Torque Specification - U.S.A. And Canada

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
2	Evaporative hose No. 1 (See Evaporative hose No. 1 installation note .)
3	Evaporative hose No. 2 (See Evaporative hose No. 2 installation note .)
4	CV solenoid valve connector
5	Fuel tank pressure sensor connector
6	Middle harness connector
7	Charcoal canister (See Charcoal canister removal note .)
8	Charcoal canister bracket

Install in the reverse order of removal.
