Evaporative hose No. 2 installation note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the evaporative hose No. 2 as shown in the figure.

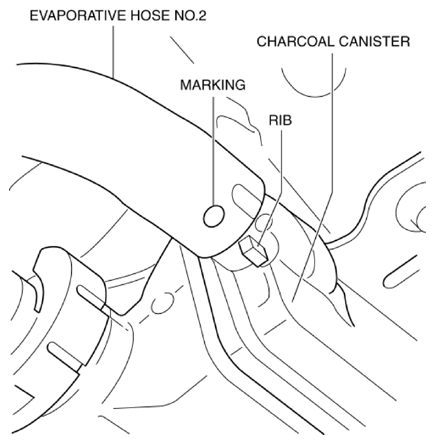

Fig 1: Identifying Evaporative Hose No. 2, Charcoal Canister And Rib
G10916417Courtesy of MAZDA MOTORS CORP.
