Blower Fan Controller Removal/Installation (Manual A/C)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

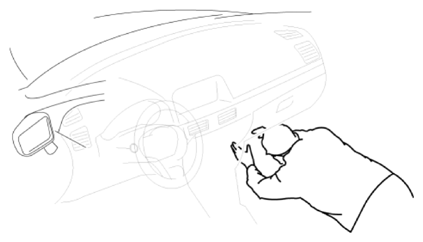

When removing the blower fan controller, perform the procedure in the posture shown in the figure.

Fig 1: Removing Blower Fan Controller

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
3. Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
4. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
Disconnect the connector.

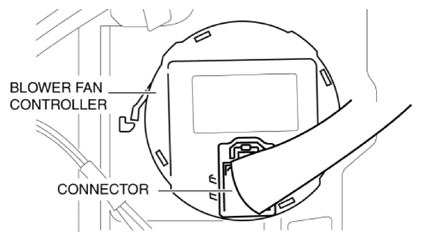

Fig 2: Identifying Blower Fan Controller And Connector
Courtesy of MAZDA MOTORS CORP.

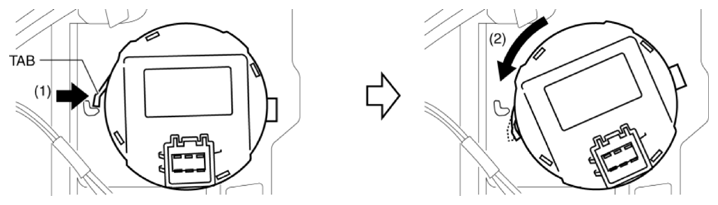

Rotate the blower fan controller (2) while pressing the tab (1).

Fig 3: Rotating Blower Fan Controller
Courtesy of MAZDA MOTORS CORP.

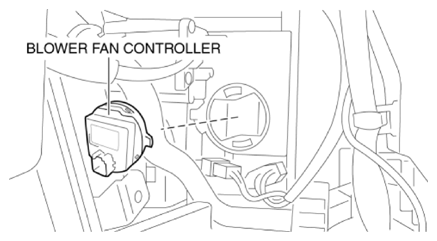

Remove the blower fan controller.

Fig 4: Identifying Blower Fan Controller
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
