Blower Fan Controller Removal/Installation (Auto A/C)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing the blower fan controller, perform the procedure in the posture shown in the figure.

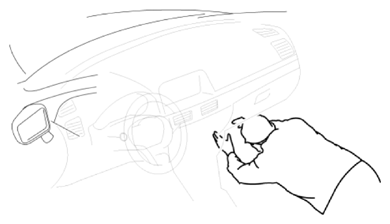

Fig 1: Removing Blower Fan Controller
G10937560Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    3. Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

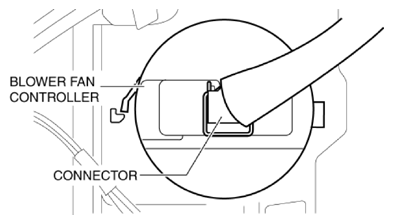

    Fig 2: Identifying Blower Fan Controller And Connector
    G10937561Courtesy of MAZDA MOTORS CORP.
  4. Rotate the blower fan controller (2) while pressing the tab (1).

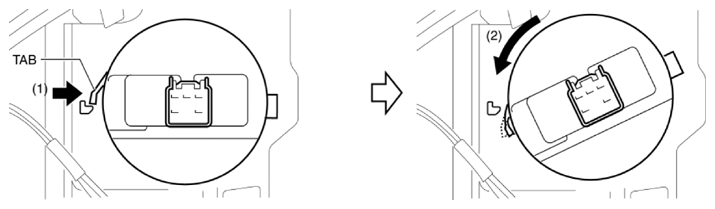

    Fig 3: Rotating Blower Fan Controller
    G10937562Courtesy of MAZDA MOTORS CORP.
  5. Remove the blower fan controller.

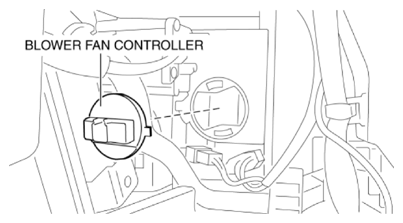

    Fig 4: Identifying Blower Fan Controller
    G10937563Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
