Front Bumper Slider

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Remove bolts A.

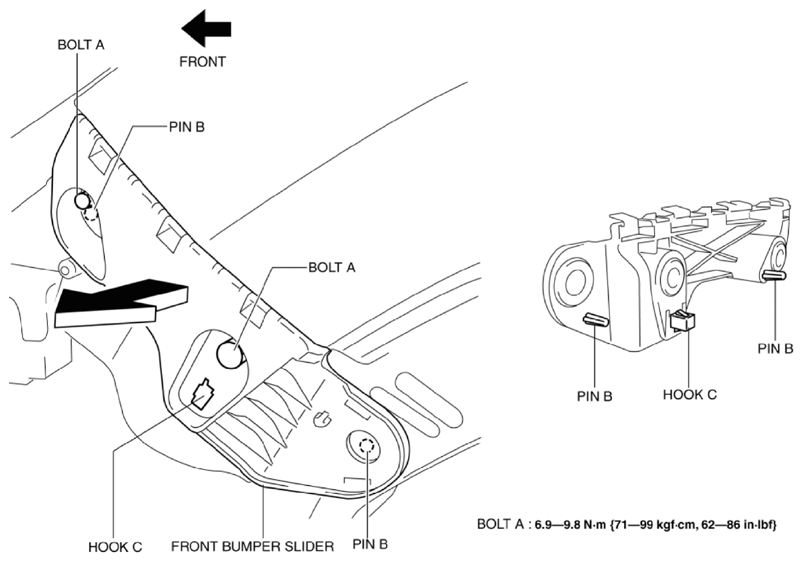

    Fig 1: Pulling Front Bumper Slider
    G10938305Courtesy of MAZDA MOTORS CORP.
  5. Pull the front bumper slider in the direction of the arrow while detaching pins B and hook C.
  6. Install in the reverse order of removal.
