Blind Spot Monitoring (BSM) System Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

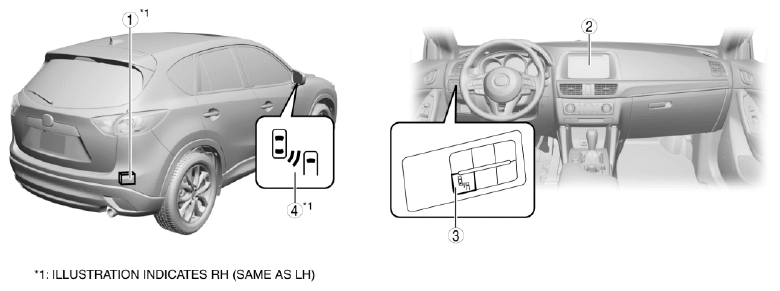

Fig 1: Blind Spot Monitoring (BSM) Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Blind spot monitoring (BSM) control module (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION .) (See BLIND SPOT MONITORING (BSM) CONTROL MODULE INSPECTION .) (See BLIND SPOT MONITORING (BSM) BRACKET REMOVAL/INSTALLATION .) (See BLIND SPOT MONITORING (BSM) RADAR TEST .)
2	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)
3	Blind spot monitoring (BSM) off switch (See BLIND SPOT MONITORING (BSM) OFF SWITCH REMOVAL/INSTALLATION .) (See BLIND SPOT MONITORING (BSM) OFF SWITCH INSPECTION .)
4	Blind spot monitoring (BSM) indicator light (See BLIND SPOT MONITORING (BSM) INDICATOR LIGHT REMOVAL/INSTALLATION .) (See BLIND SPOT MONITORING (BSM) INDICATOR LIGHT INSPECTION .)
