Blind Spot Monitoring (BSM) Off Switch Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the Blind spot monitoring (BSM) OFF switch. (See BLIND SPOT MONITORING (BSM) OFF SWITCH REMOVAL/INSTALLATION .)
Verify that the resistance between BSM OFF switches B and C is as indicated in the chart.

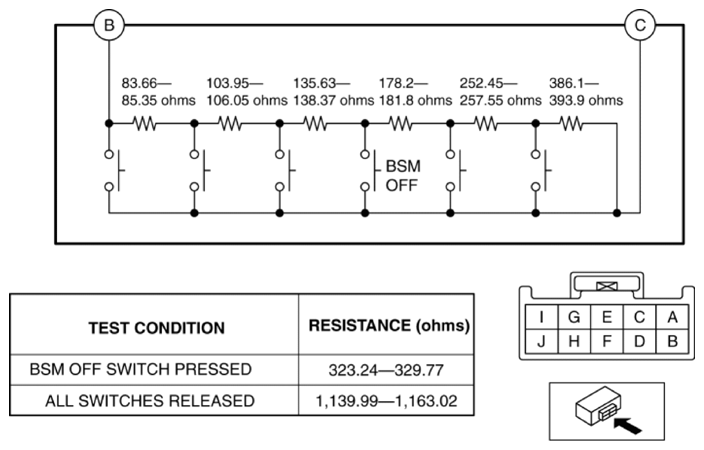

Fig 1: Blind Spot Monitoring (BSM) OFF Switch - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If the resistance cannot be verified as indicated in the chart, replace the cluster switch.
Apply battery positive voltage to BSM OFF switch terminal J, and connect terminal I to ground.

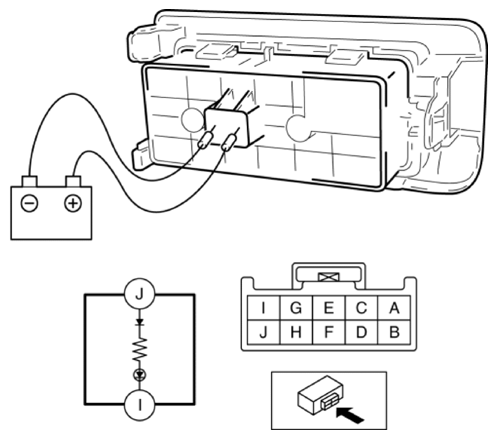

Fig 2: Applying Battery Positive Voltage To BSM OFF Switch Terminal J
Courtesy of MAZDA MOTORS CORP.
Verify that the LED illuminates.
- If there is any malfunction, replace the cluster switch.
