Theft-Deterrent Horn Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    2. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

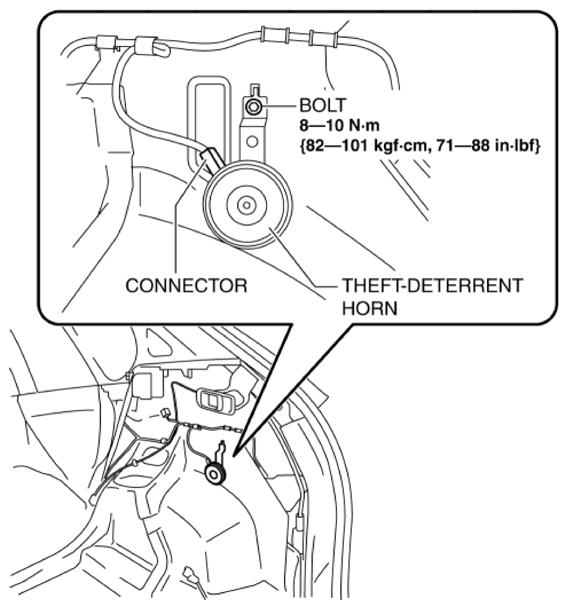

    Fig 1: Identifying Theft-Deterrent Horn Bolt With Torque Specifications
    G10938891Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the theft-deterrent horn.
  6. Install in the reverse order of removal.
