Remove the rear shock absorber. (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

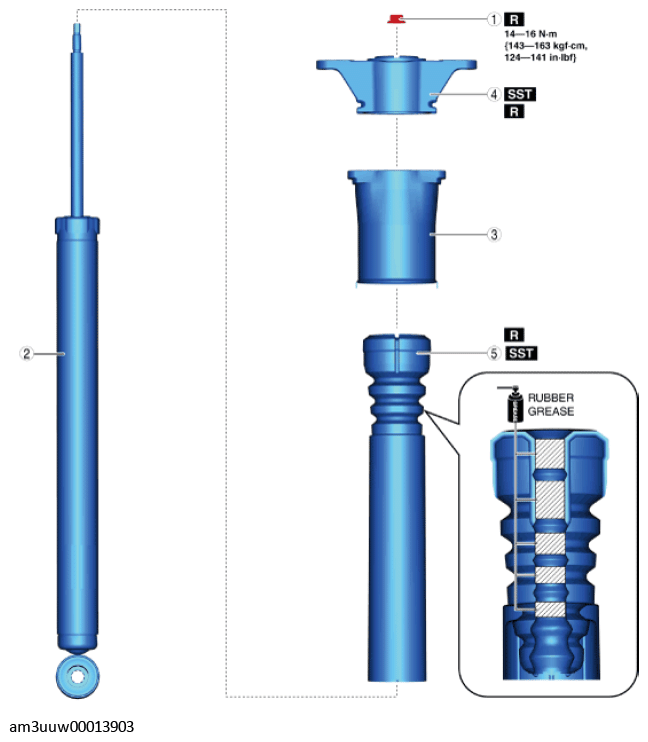

Fig 1: Exploded View Of Rear Shock Absorber

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Piston rod nut
2	Rear shock absorber
3	Dust boot (See Dust boot assembly note .)
4	Mounting rubber (See Bound stopper component and mounting rubber assembly note .)
5	Bound stopper component (See Bound stopper component and mounting rubber assembly note .)
