Dust boot assembly note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the dust boot to position A shown in the figure.

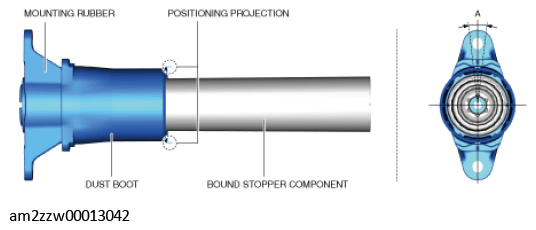

Fig 1: Assembling Dust Boot To Position A

Courtesy of MAZDA MOTORS CORP.

A:0°±6.5°
