Bound stopper component and mounting rubber assembly note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Apply rubber grease to the inside of the bound stopper component.

Fig 1: Applying Rubber Grease To Inside Of Bound Stopper Component
Courtesy of MAZDA MOTORS CORP.

Grease application amount

0.2-0.5 g {0.008-0.017 oz}
Assemble the bound stopper component and the mounting rubber using the SSTs and a press.

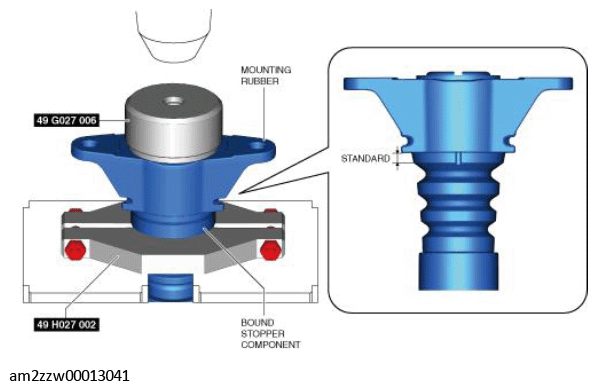

Fig 2: Assembling Bound Stopper Component And Mounting Rubber Using SST And Press
Courtesy of MAZDA MOTORS CORP.
Verify that the assembly position of the bound stopper component and the mounting rubber is within the standard.
Standard

8.0 mm {0.31 in} or less
