Sedan (4SD)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Disconnect the connector. (See WASHER MOTOR REMOVAL/INSTALLATION .)
Disconnect the washer hose from the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)
Apply battery voltage to washer motor terminal B, and connect terminal A to ground.
WARNING:
- Water sprayed on the battery and ground could cause electrocution. When performing the washer motor inspection, prepare a container to collect washer fluid and be careful not to spray washer fluid.

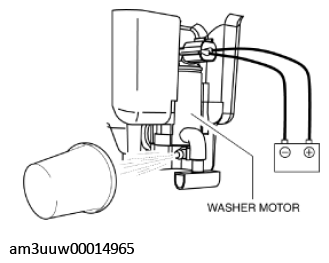

Fig 1: Applying Battery Voltage To Washer Motor Terminal B
Courtesy of MAZDA MOTORS CORP.
Verify that washer fluid sprays from the washer motor.

Fig 2: Spraying Washer Fluid From Washer Motor
Courtesy of MAZDA MOTORS CORP.
- If washer fluid does not spray from the washer motor, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)
