Rear Washer Nozzle Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
- Remove the rear spoiler. (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)
- Disconnect the rear washer hose from the rear washer nozzle.

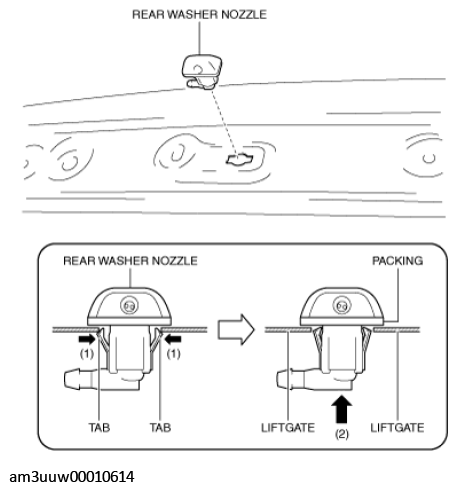

- Press out the rear washer nozzle in the direction of the arrow (2) shown in the figure while pressing the rear washer nozzle tabs in the direction of the arrows (1) shown in the figure.
- Remove the rear washer nozzle.
- Install in the reverse order of removal.
- Adjust the rear washer nozzle. (See REAR WASHER NOZZLE ADJUSTMENT .)
