Rear Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the nozzle angle is adjusted with excessive force by inserting a needle or similar thin tool into the rear washer nozzle, it could damage the nozzle internally. When adjusting the rear washer nozzle, be careful not to apply excessive force.

Insert a needle or similar thin tool into the rear washer nozzle and adjust the area where washer fluid is sprayed as shown in the figure.

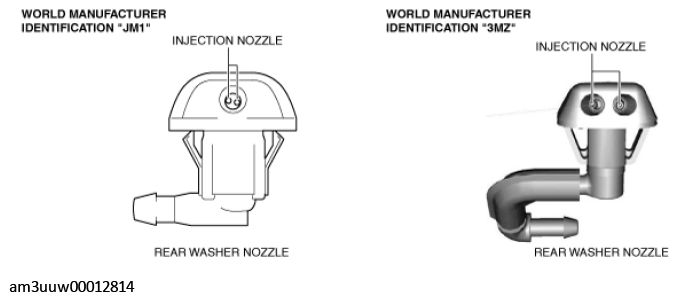

Fig 1: Rear Washer Nozzle And Injection Nozzle
Courtesy of MAZDA MOTORS CORP.

World manufacturer identification "JM1"

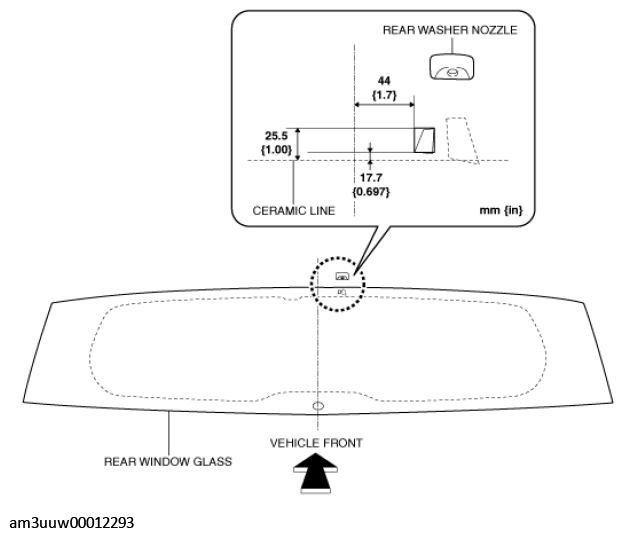

Fig 2: Rear Washer Nozzle Adjustment Dimensions - World Manufacturer Identification "JM1"
Courtesy of MAZDA MOTORS CORP.

World manufacturer identification "3MZ"

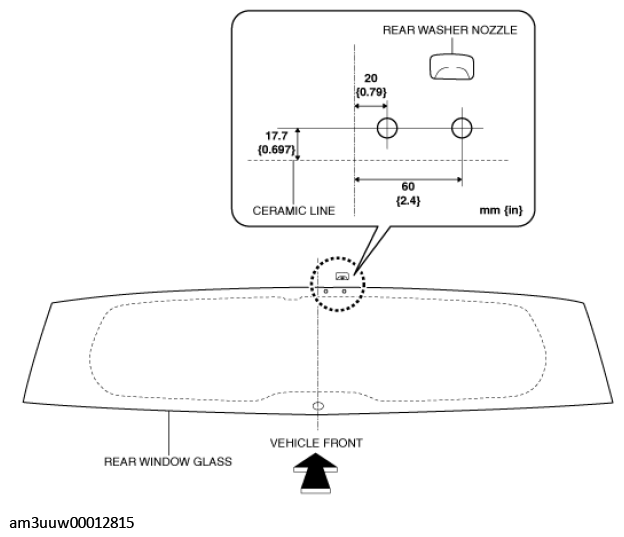

Fig 3: Rear Washer Nozzle Adjustment Dimensions - World Manufacturer Identification "3MZ"
Courtesy of MAZDA MOTORS CORP.
