Lower Panel Removal/Installation: Passenger-Side: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove bolts A.

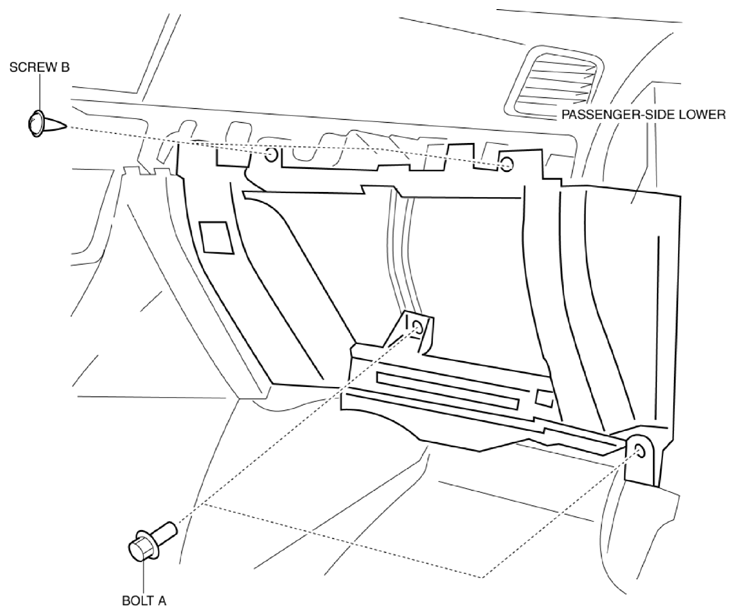

    Fig 1: Pulling Passenger-Side Lower Panel
    G10939032Courtesy of MAZDA MOTORS CORP.
  4. Remove screws B.
  5. Take the shaded area shown in the figure, and pull the passenger-side lower panel in the direction of the arrow in the order of (1), (2), (3) and remove it while detaching hooks C, clips D and pins E.

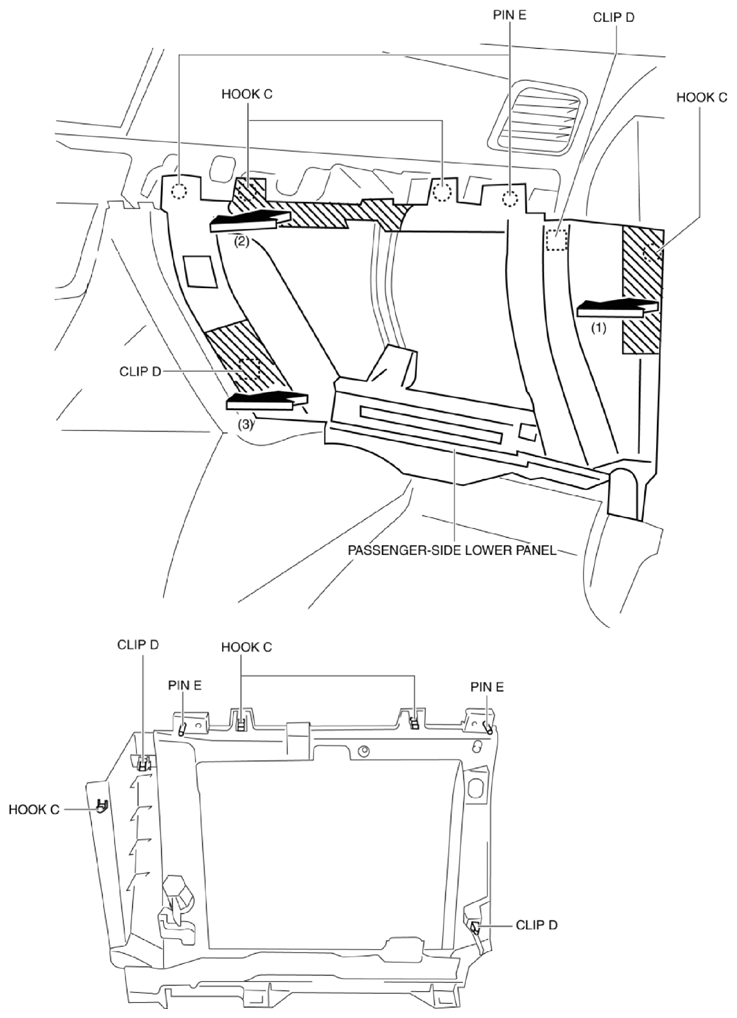

Fig 2: Detaching Hooks C, Clips D And Pins E
G10939033Courtesy of MAZDA MOTORS CORP.
