Steering Location Index
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

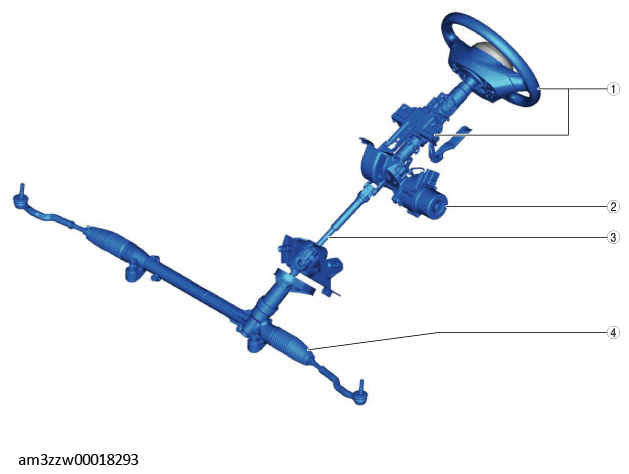

COMPONENT DESCRIPTION
| 1 | Steering wheel and column (See STEERING WHEEL AND COLUMN INSPECTION .) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .) (See STEERING SHAFT INSPECTION .) (See STEERING WHEEL SIDE COVER REMOVAL/INSTALLATION .) (See STEERING WHEEL BEZEL REMOVAL/INSTALLATION .) (See STEERING WHEEL COVER REMOVAL/INSTALLATION .) |
| 2 | EPS CM, EPS motor (See EPS CONTROL MODULE INSPECTION .) |
| 3 | Inter mediate shaft (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION .) |
| 4 | Steering gear and linkage (See TIE-ROD END REPLACEMENT .) (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .) (See STEERING GEAR AND LINKAGE INSPECTION .) (See STEERING GEAR AND LINKAGE DISASSEMBLY .) (See TIE-ROD END INSPECTION .) (See TIE ROD INSPECTION .) (See STEERING GEAR AND LINKAGE ASSEMBLY .) |
