Purge Solenoid Valve Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Disconnect the high pressure fuel pump connector.
Disconnect the harness clip as shown in the figure.

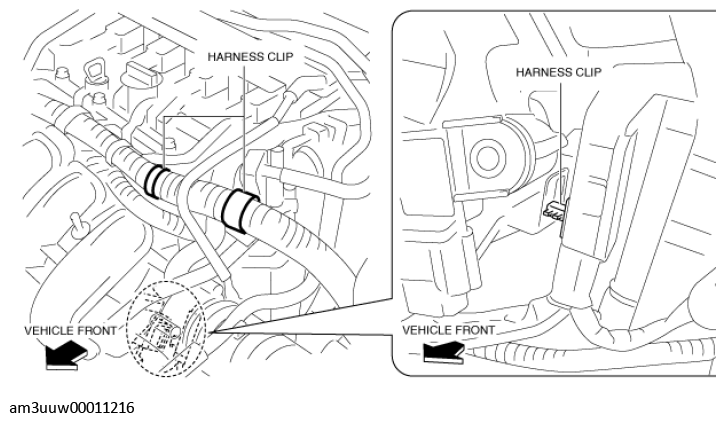

Fig 1: Disconnecting Harness Clip
Courtesy of MAZDA MOTORS CORP.

Remove in the order indicated in the table.

SKYACTIV-G 2.0

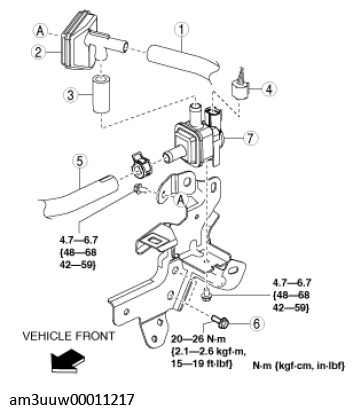

Fig 2: Exploded View Of Purge Solenoid Valve With Torque Specification - SKYACW-G 2.0

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporative hose No. 1 (See Evaporative Hose No. 1 Installation Note .)
2	Catch tank
3	Evaporative hose No. 2
4	Purge solenoid valve connector
5	Evaporative hose No. 3 (See Evaporative Hose No. 3 Installation Note .)
6	Purge solenoid valve bracket installation bolt
7	Purge solenoid valve (See Purge Solenoid Valve Installation Note .)

SKYACTIV-G 2.5

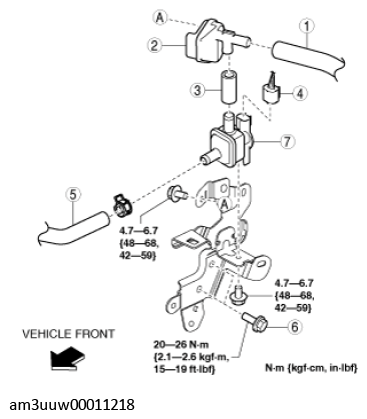

Fig 3: Exploded View Of Purge Solenoid Valve With Torque Specification - SKYACW-G 2.5

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporative hose No. 1 (See Evaporative Hose No. 1 Installation Note .)
2	Catch tank
3	Evaporative hose No. 2
4	Purge solenoid valve connector
5	Evaporative hose No. 3 (See Evaporative Hose No. 3 Installation Note .)
6	Purge solenoid valve bracket installation bolt
7	Purge solenoid valve (See Purge Solenoid Valve Installation Note .)

Install in the reverse order of removal.
