Evaporative Hose No. 3 Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the evaporative hose No. 3 as shown in the figure.

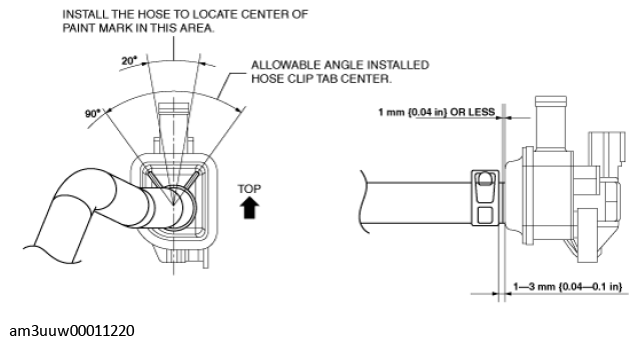

Fig 1: Installing Evaporative Hose No. 3
G11435719Courtesy of MAZDA MOTORS CORP.
