Purge Solenoid Valve Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily install the purge solenoid valve to the bracket.
Lift up and tighten the purge solenoid valve as shown in the figure.

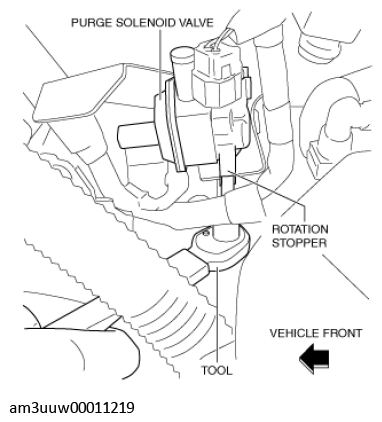

Fig 1: Installing Purge Solenoid Valve To Bracket

Courtesy of MAZDA MOTORS CORP.
