- Remove in the order indicated in the table.
- Install in the reverse order of removal.

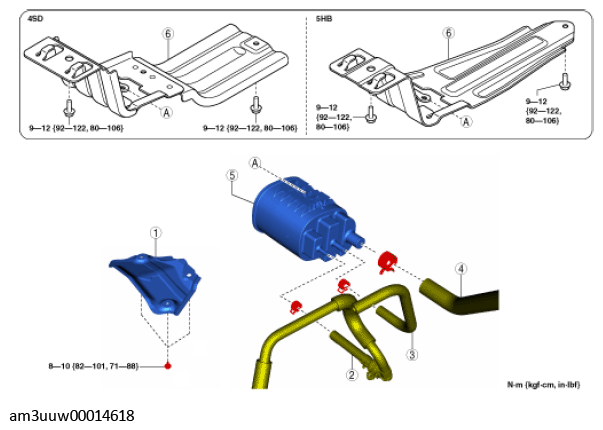

COMPONENT DESCRIPTION
| 1 | Protector |
| 2 | Evaporative hose No. 1 (See Evaporative hose No. 1 installation note .) |
| 3 | Evaporative hose No. 2 (See Evaporative hose No. 2 installation note .) |
| 4 | Evaporative hose No. 3 (See Evaporative hose No. 3 installation note .) |
| 5 | Charcoal canister (See Charcoal canister removal note .) |
| 6 | Charcoal canister bracket |
