Evaporative hose No. 2 installation note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the evaporative hose No. 2 as shown in the figure.

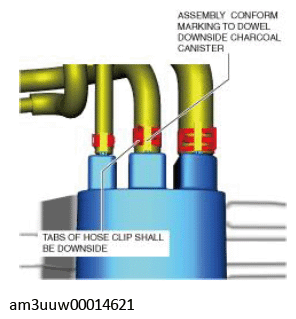

Fig 1: Connecting Evaporative Hose No. 2
G11450738Courtesy of MAZDA MOTORS CORP.
