Evaporative hose No. 1 installation note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the evaporative hose No. 1 as shown in the figure.

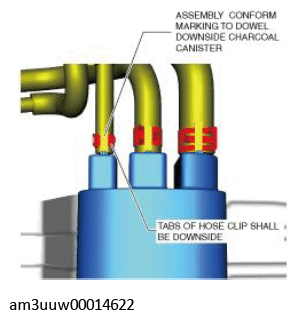

Fig 1: Connecting Evaporative Hose No. 1
G11450739Courtesy of MAZDA MOTORS CORP.
