GPS Antenna Feeder Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
4. GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
5. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION .)
Remove clips A and B in the position shown in the figure.

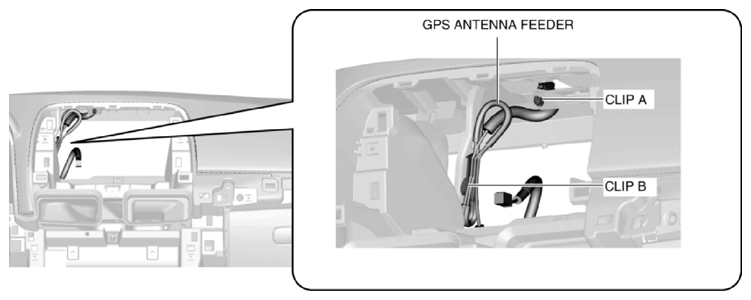

Fig 1: Removing Clips A And B
Courtesy of MAZDA MOTORS CORP.
Remove the GPS antenna feeder.
Install in the reverse order of removal.
