Global Positioning System (GPS) Antenna Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
Disconnect the connector.

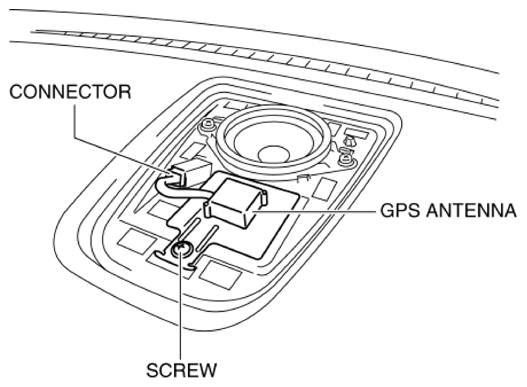

Fig 1: Disconnecting GPS Antenna Connector
Courtesy of MAZDA MOTORS CORP.
Remove the screw.
Remove the GPS antenna.
Install in the reverse order of removal.
