Auxiliary Jack/USB Port/SD Card Slot Hub Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
4. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
7. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
While pressing the tabs of the auxiliary jack/USB port/SD card slot hub in the direction of arrows
1. shown in the figure, move the auxiliary jack/USB port/SD card slot hub in the direction of arrow
2. and detach the tabs of the auxiliary jack/USB port/SD card slot hub from the front console.

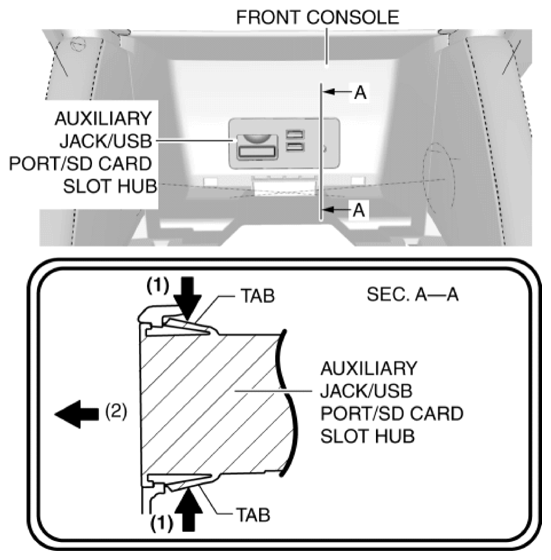

Fig 1: Pressing Tabs Of Auxiliary Jack/USB Port/SD Card Slot Hub
Courtesy of MAZDA MOTORS CORP.
Remove the auxiliary jack/USB port/SD card slot hub.
Install in the reverse order of removal.
