Auxiliary Jack/USB Port Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    7. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  3. While pressing the hole cover tabs in the direction of arrows (1) shown in the figure, press the hole cover in the direction of arrow (2) and detach the hole cover tabs from the front console.

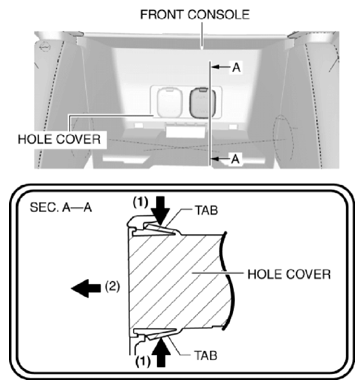

    Fig 1: Pressing Hole Cover Tabs
    G10939601Courtesy of MAZDA MOTORS CORP.
  4. Remove the hole cover component.
  5. While pressing the auxiliary jack/USB port tabs in the direction of arrows (1) shown in the figure using the flathead screwdriver wrapped in protective tape, move the auxiliary jack/USB port in the direction of arrow (2) and detach the auxiliary jack/USB port tabs from the hole cover.

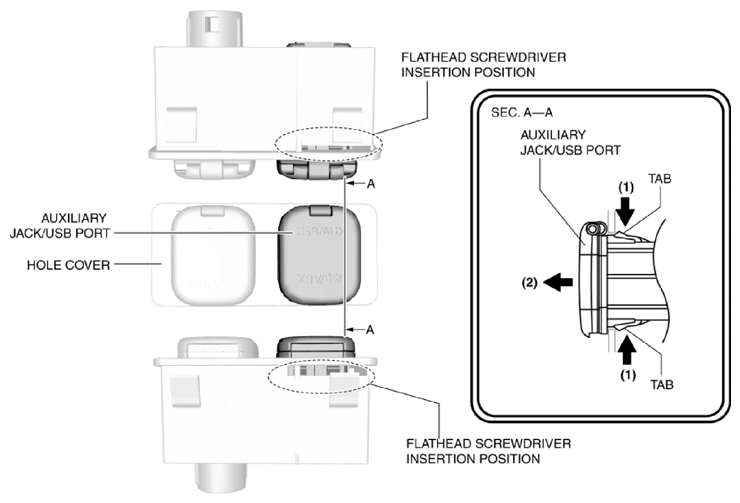

    Fig 2: Pressing Auxiliary Jack/USB Port Tabs
    G10939602Courtesy of MAZDA MOTORS CORP.
  6. Remove the auxiliary jack/USB port.
  7. Install in the reverse order of removal.
