Auxiliary Jack Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    7. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)

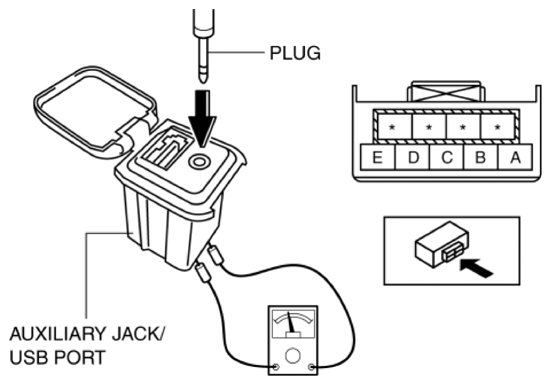

  3. Connect a commercially-available plug to the external input unit.
    Fig 1: Connecting Commercially-Available Plug To External Input Unit
    G10939603Courtesy of MAZDA MOTORS CORP.
  4. Verify that the continuity between the external input unit terminals is as indicated in the table.
    Fig 2: External Input Unit Terminals Continuity Chart
    G10939604Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the external input unit.
