Antenna Feeder No. 1 Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    3. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
  3. Disconnect antenna feeder No. 2.

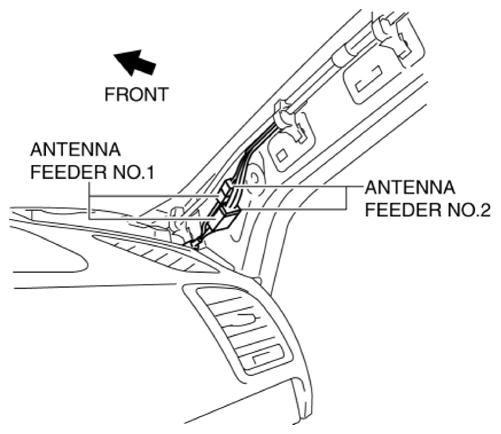

    Fig 1: Disconnecting Antenna Feeder No. 2
    G10939542Courtesy of MAZDA MOTORS CORP.
  4. Verify that the continuity between antenna feeder No. 1 terminals is as indicated in the table.

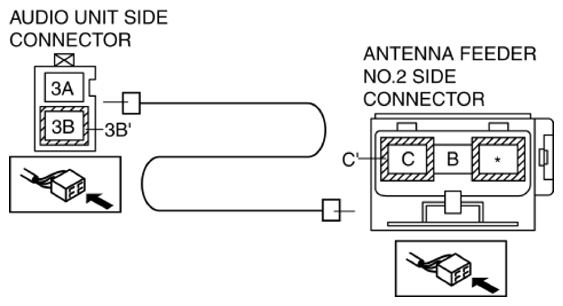

    Fig 2: Checking Continuity Between Antenna Feeder No. 1 Terminals
    G10939543Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace antenna feeder No. 1.

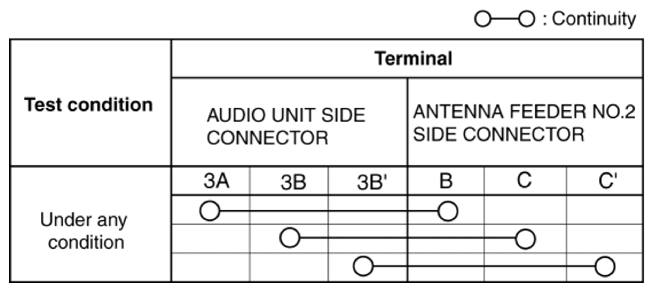

    Fig 3: Antenna Feeder No. 1 Terminals Continuity Chart
    G10939544Courtesy of MAZDA MOTORS CORP.
