Sedan (4SD): Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
    7. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Remove the nuts.

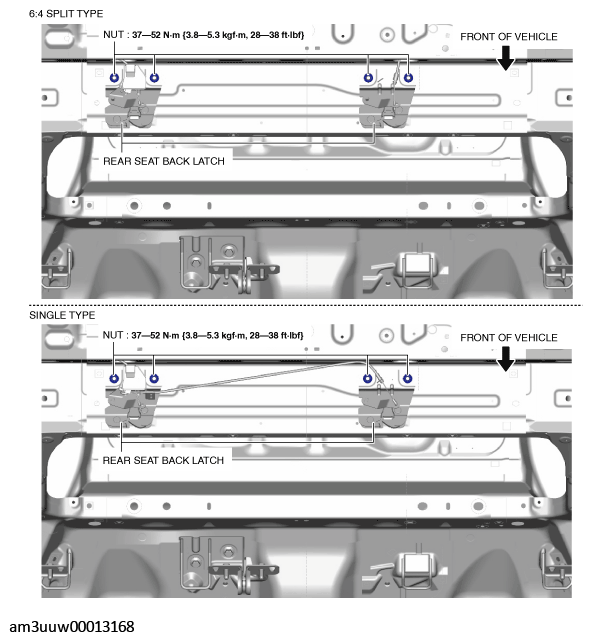

    Fig 1: Rear Seat Back Latch Nuts Location
    G11467555Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the cable from the rear seat back latch.

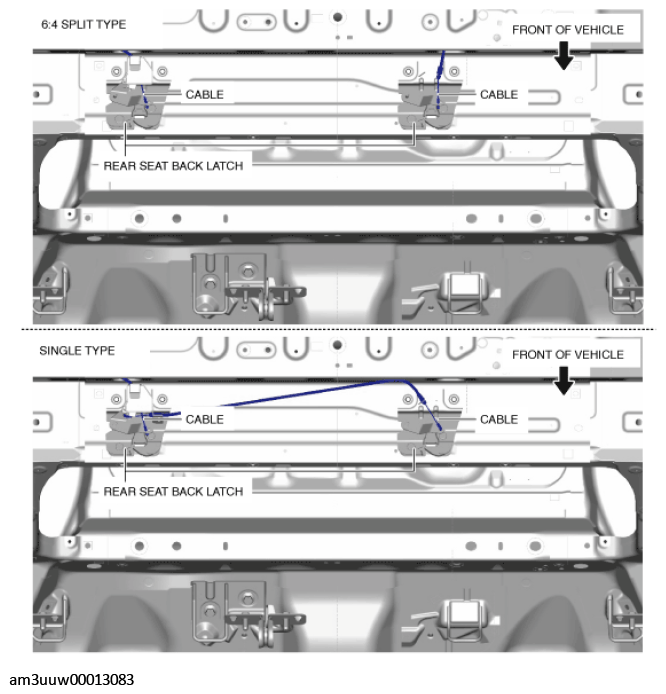

    Fig 2: Disconnecting Cable From Rear Seat Back Latch
    G11467556Courtesy of MAZDA MOTORS CORP.
  5. Remove the plate from the rear seat back latch. (With single type) (See PLATE INSTALLATION NOTE .)

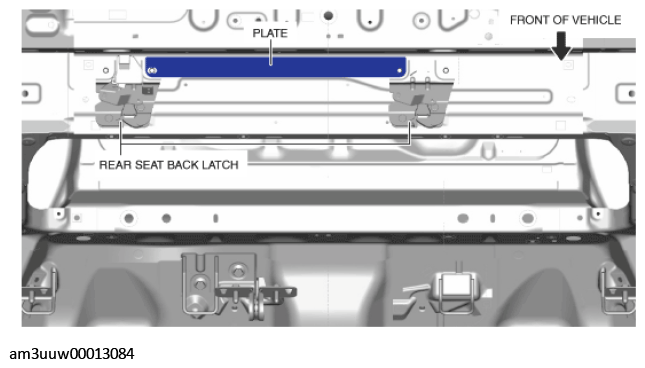

    Fig 3: Rear Seat Back Latch Plate Location (With Single Type)
    G11467557Courtesy of MAZDA MOTORS CORP.
  6. Remove the rear seat back latch.

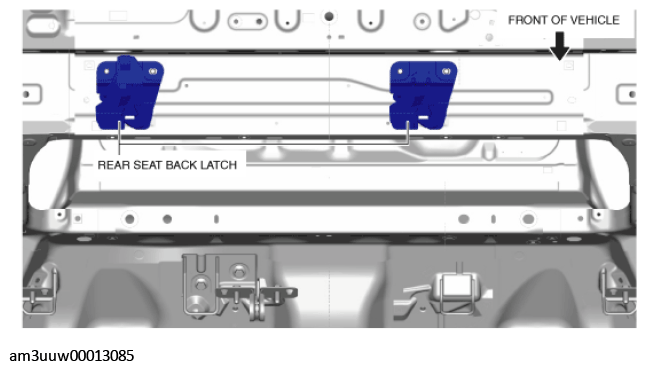

    Fig 4: Rear Seat Back Latch Location
    G11467558Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
