Active Air Shutter Cover Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
  4. Remove the active air shutter. (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
  5. Remove the screws.
    Fig 1: Locating Active Air Shutter Screw
    G11447503Courtesy of MAZDA MOTORS CORP.
  6. While pressing the frame tabs in the direction of arrow (1) shown in the figure, pull the active air shutter cover in the direction of arrow (2) to detach the active air shutter cover from the frame tabs.

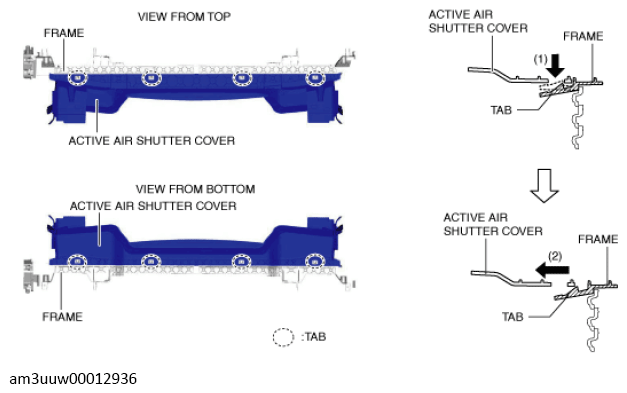

    Fig 2: Pressing Frame Tabs
    G11447504Courtesy of MAZDA MOTORS CORP.
  7. Detach all tabs and remove the active air shutter cover from the frame.
  8. Install in the reverse order of removal.
