Gap Adjustment

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Measure the gap difference between the trunk lid and the body.

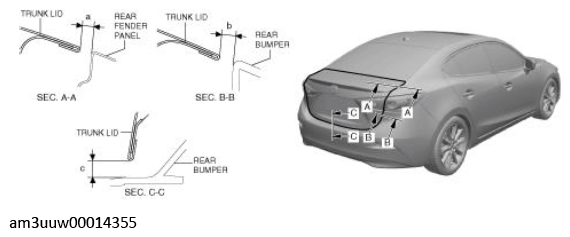

Fig 1: Measuring Gap Difference Between Trunk Lid And Body
Courtesy of MAZDA MOTORS CORP.

Standard Clearance

a: 2.3-4.3 mm {0.10-0.16 in}

b: 2.0-6.0 mm {0.08-0.23 in}

c: 4.1-8.1 mm {0.17-0.31 in}
- If the measured value exceeds the standard clearance, adjust the trunk lid using the following procedure:
Loosen the bolts, and reposition the trunk lid. (See TRUNK LID REMOVAL/INSTALLATION .)
Tighten the bolts. (See TRUNK LID REMOVAL/INSTALLATION .)
Spray or pour water on the trunk lid and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
