Without Center Display

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

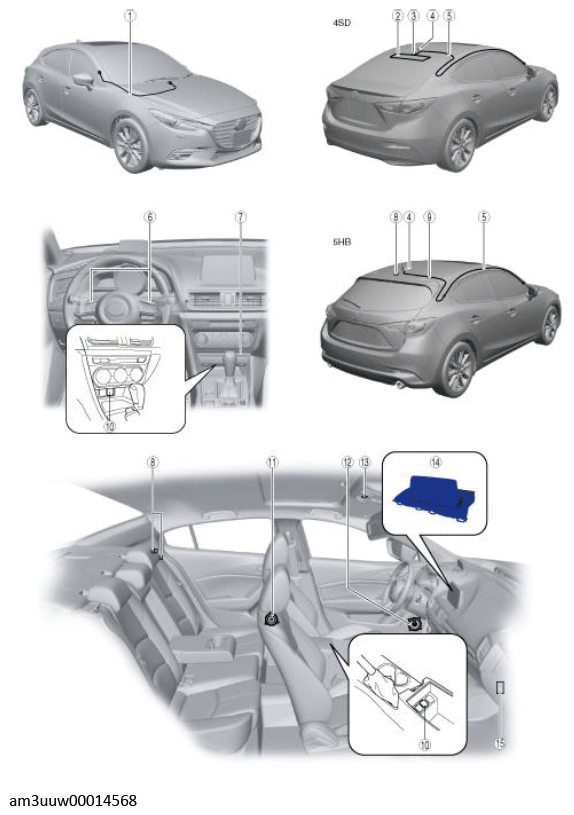

Fig 1: Entertainment Component Location - Without Center Display

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Antenna feeder No. 1 (See ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 1 INSPECTION .)
2	Glass antenna (See GLASS ANTENNA INSPECTION .)
3	Antenna amplifier (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .) (See ANTENNA AMPLIFIER INSPECTION .)
4	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
5	Antenna feeder No. 2 (See ANTENNA FEEDER NO. 2 REMOVAL .) (See ANTENNA FEEDER NO. 2 INSTALLATION .) (See ANTENNA FEEDER NO. 2 INSPECTION .)
6	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
7	CD player (with CD player) (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
8	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
9	Antenna feeder No. 3 (See ANTENNA FEEDER NO. 3 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 3 INSPECTION .)
10	Auxiliary jack/USB port (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT INSPECTION .)
11	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
12	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See FRONT DOOR SPEAKER INSPECTION .)
13	Microphone (with Bluetooth * system) (See MICROPHONE REMOVAL/INSTALLATION .)
14	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
15	Bluetooth ° unit (with Bluetooth ° system) (See BLUETOOTH® UNIT REMOVAL/INSTALLATION .) (See Bluetooth® PAIRING PROCEDURE .)
