Antenna Feeder No. 3 Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  4. Remove the following parts:
    1. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    2. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Rear assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  5. Partially peel back the headliner.
    NOTE:
    • If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.
  6. Disconnect antenna feeder No. 2.
  7. Disconnect the center roof antenna connector.
  8. Verify that the continuity between antenna feeder No. 3 terminals is as indicated in the table.
    NOTE:
    • There are two types, a type A connector and type B connector, depending on the vehicle's period of manufacture.

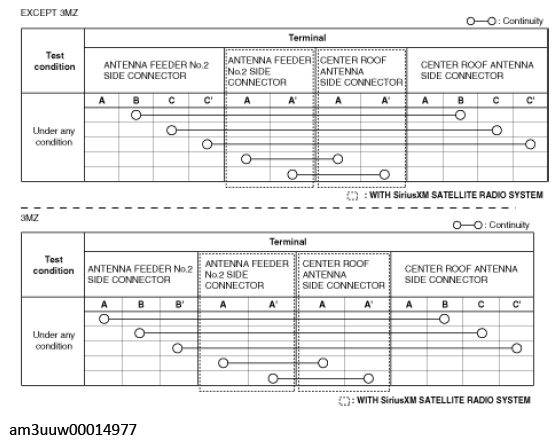

    Fig 1: Antenna Feeder No. 3 Terminals Continuity Chart
    G11448726Courtesy of MAZDA MOTORS CORP.

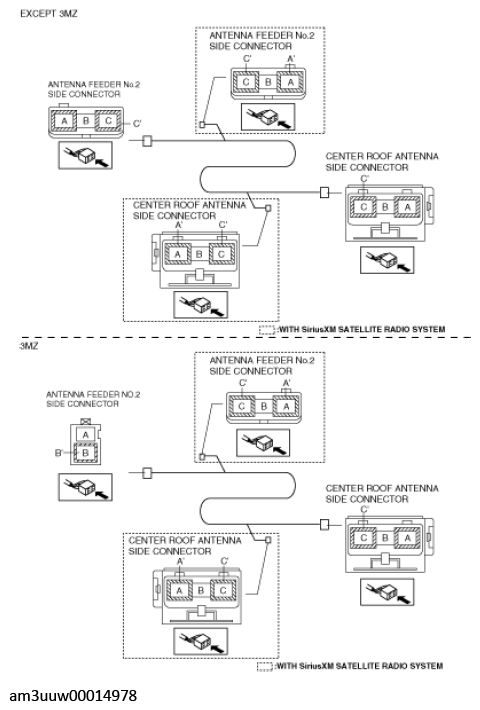

    Fig 2: Checking Continuity Between Antenna Feeder No. 3 Terminals
    G11448727Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace antenna feeder No. 3.
