Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)]
    6. Rear assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  3. Partially peel back the headliner.
    NOTE:
    • If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.
  4. Disconnect the connector.

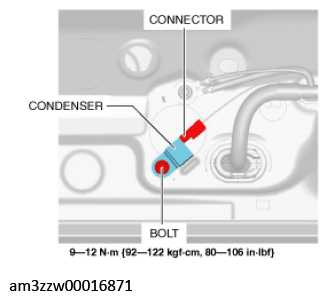

    Fig 1: Condenser Connector Location
    G11448778Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.
  6. Remove the condenser.
  7. Install in the reverse order of removal.
