Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. Rear assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  3. Partially peel back the headliner.
    NOTE:
    • If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.
  4. Disconnect the connector.

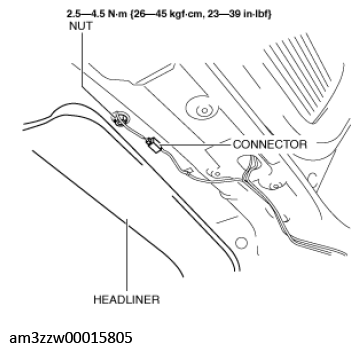

    Fig 1: Disconnecting Center Roof Antenna Connector
    G11448771Courtesy of MAZDA MOTORS CORP.
  5. Remove the nut.
  6. While pressing the center roof antenna tabs in the direction of the arrows (1) shown in the figure, press the center roof antenna in the direction of the arrow (2) to detach the center roof antenna tabs from the body.

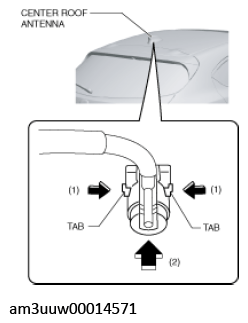

    Fig 2: Pressing Center Roof Antenna
    G11448772Courtesy of MAZDA MOTORS CORP.
  7. Remove the center roof antenna.
  8. Install in the reverse order of removal.
