Lower Panel Removal/Installation: Passenger-side: Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clips, tab, hook, pins, and guide while pressing the passenger-side lower panel in the order of the arrows (1), (2), (3), (4), and (5) shown in the figure.

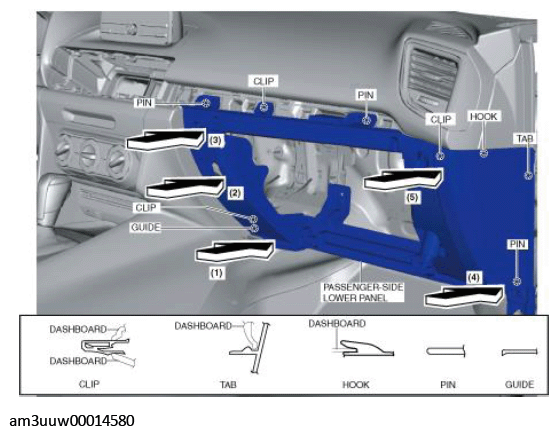

    Fig 1: Pressing Passenger-Side Lower Panel
    G11449314Courtesy of MAZDA MOTORS CORP.
  2. Install the screw (1).

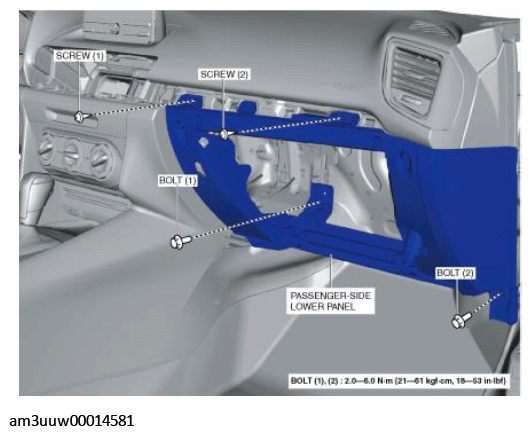

    Fig 2: Installing Passenger-Side Lower Panel Screws
    G11449315Courtesy of MAZDA MOTORS CORP.
  3. Install the screw (2).
  4. Install the bolt (1).
  5. Install the bolt (2).
  6. Install the following parts:
    1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  7. After installing the passenger-side lower panel and glove compartment, measure the clearance, and verify that the measurement value is within the specification shown in the figure.
    • If the measurement value is not within the specification after measuring the clearance between the passenger-side lower panel and glove compartment, adjust the passenger-side lower panel to the proper position. (See PASSENGER-SIDE LOWER PANEL ADJUSTMENT .)

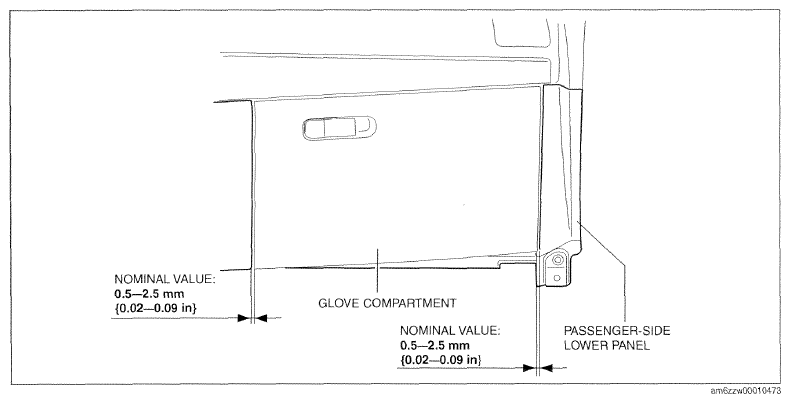

Fig 3: Measuring Clearance Between Passenger-Side Lower Panel And Glove Compartment
G09787980Courtesy of MAZDA MOTORS CORP.
