Passenger-side lower panel adjustment

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  2. Loosen the bolts.
    • If the passenger-side lower panel moves in the lateral direction when the bolts are loosened, go to the Step  3 and  4.
    • If the passenger-side lower panel does not move in the lateral direction when the bolts are loosened, go to the Step  5.

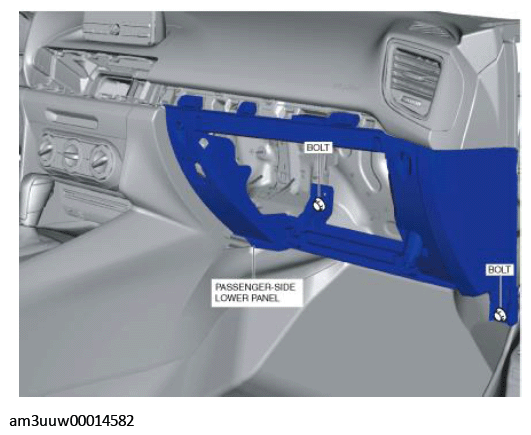

    Fig 1: Passenger-Side Lower Panel Bolts Location
    G11449317Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolts.

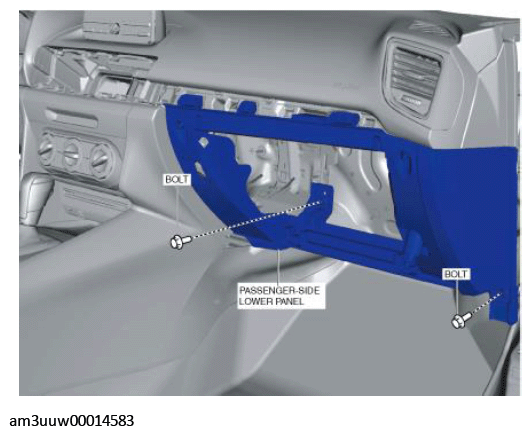

    Fig 2: Removing Passenger-Side Lower Panel Bolts
    G11449318Courtesy of MAZDA MOTORS CORP.
  4. Install the bolts in the order of (1), (2) shown in the figure.

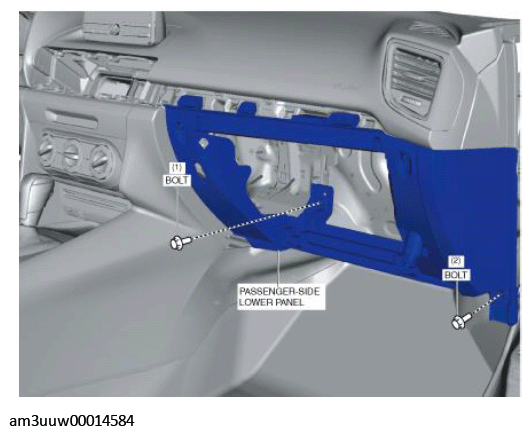

    Fig 3: Passenger-Side Lower Panel Bolts Tightening Sequence
    G11449319Courtesy of MAZDA MOTORS CORP.
  5. Install the bolts in the order of (1), (2) while pressing the shaded area shown in the figure for the passenger-side lower panel.

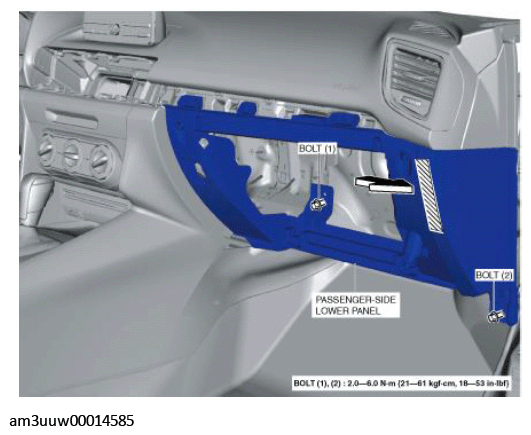

    Fig 4: Installing Passenger-Side Lower Panel
    G11449320Courtesy of MAZDA MOTORS CORP.
  6. Install the glove compartment, measure the clearance between the glove compartment and passenger-side lower panel again, and verify that it is within the specification.
    • If it is not within the specification after measuring the clearance, repeat the adjustment procedure from Step  1.
