Sedan (4SD)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
    7. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

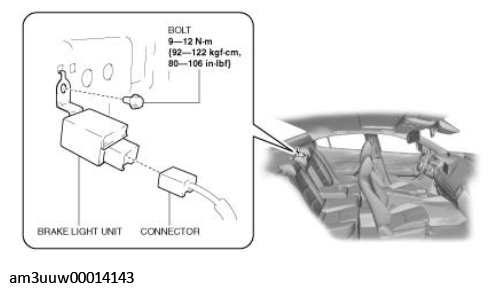

    Fig 1: Disconnecting Brake Light Unit Connector
    G11449453Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the brake light unit in the direction of the arrow shown in the figure.
    Fig 2: Removing Brake Light Unit
    G11449454Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
