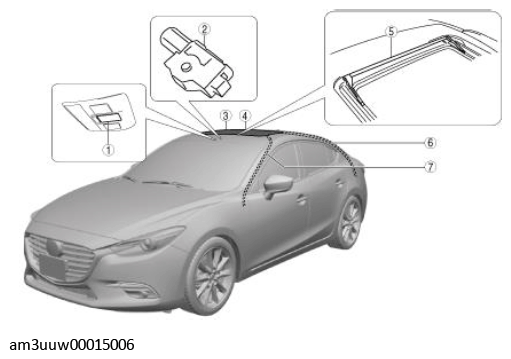

Sunroof Location Index
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT DESCRIPTION
| 1 | Sunroof switch (See SUNROOF SWITCH REMOVAL/INSTALLATION .) (See SUNROOF SWITCH INSPECTION .) (See SUNROOF SYSTEM INITIALIZATION PROCEDURE .) |
| 2 | Sunroof motor (See SUNROOF MOTOR REMOVAL/INSTALLATION .) (See SUNROOF MOTOR INSPECTION .) |
| 3 | Glass panel (See GLASS PANEL REMOVAL/INSTALLATION .) (See GLASS PANEL ADJUSTMENT .) |
| 4 | Sunroof unit (See SUNROOF UNIT REMOVAL/INSTALLATION .) (See SUNROOF UNIT DISASSEMBLY/ASSEMBLY .) |
| 5 | Deflector (See DEFLECTOR REMOVAL/INSTALLATION .) |
| 6 | Rear drain hose (See REAR DRAIN HOSE REMOVAL/INSTALLATION .) |
| 7 | Front drain hose (See FRONT DRAIN HOSE REMOVAL/INSTALLATION . |
