Sunroof Motor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the front map light. (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
Disconnect the connector.

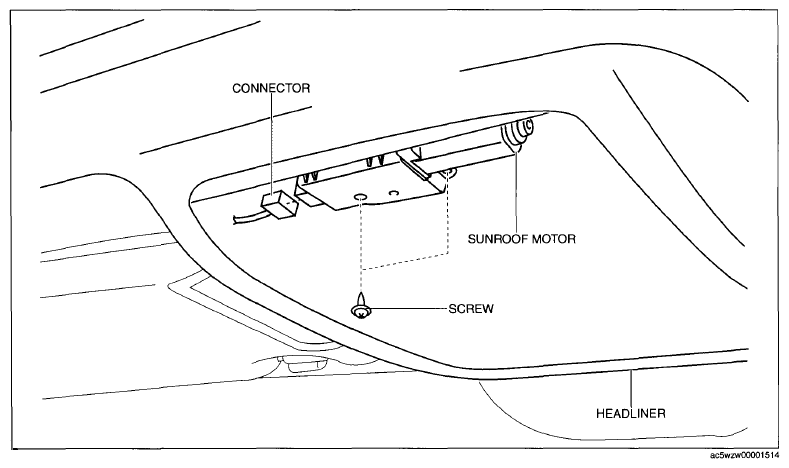

Fig 1: Disconnecting Sunroof Motor Connector
Courtesy of MAZDA MOTORS CORP.
Remove the screws.
Remove the sunroof motor.
Install in the reverse order of removal.
