Glass Panel Adjustment

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Fully close the glass panel.
Measure the gap and height between the glass panel and body.
Loosen the installation screws and adjust the glass panel.

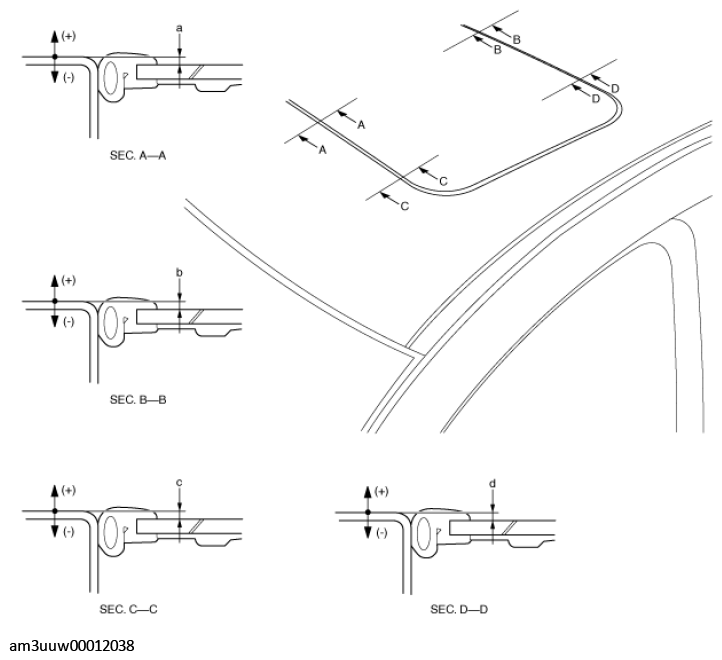

Fig 1: Measuring Gap Between Glass Panel And Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. -2.6-0 mm {-0.10-0.00 in}
2. -2.4-0.2 mm {-0.094-0.007 in}
3. -2.2-0.4 mm {-0.08-0.01 in}
4. -2.4-0.2 mm {-0.094-0.007 in}
Tighten the installation screws. (See GLASS PANEL REMOVAL/INSTALLATION .)
When inserting the plastic card between the weatherstrip and the body, and moving the plastic card in the direction of the arrows shown in the figure, verify that the plastic card has resistance.

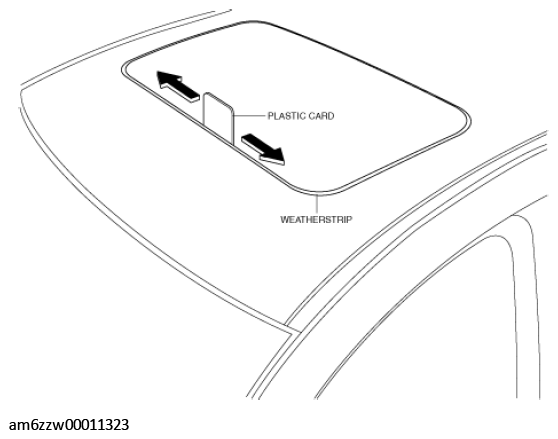

Fig 2: Moving Plastic Card Between Weatherstrip And Body
Courtesy of MAZDA MOTORS CORP.
- If the sunroof is not shut tightly, readjust by performing Steps 3 and 4.
