Instrumentation/Driver Info. Location Index: Exterior

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

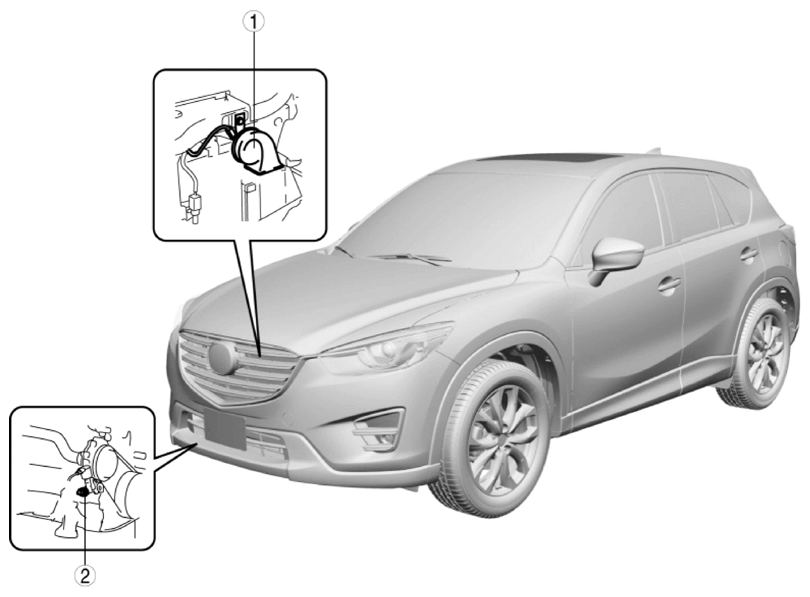

Fig 1: Oil Pressure Switch And Horn
G10939692Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Horn
(See HORN REMOVAL/INSTALLATION .)
(See HORN INSPECTION .)
2 Oil pressure switch
(See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .)
(See OIL PRESSURE SWITCH INSPECTION .)
