Horn Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

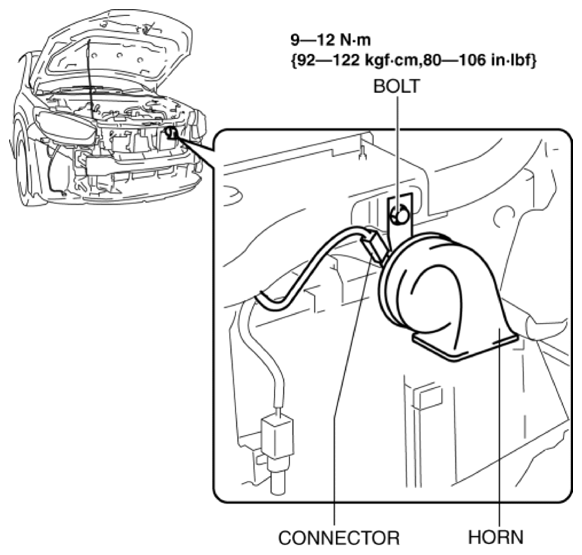

    Fig 1: Identifying Horn Bolt With Torque Specifications
    G10939778Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the horn.
  6. Install in the reverse order of removal.
